Inicio /Productos/Inversores de energía solar/micro inverter solar micro inverter 300w on grid solar panel microinverter 165*176*38mm

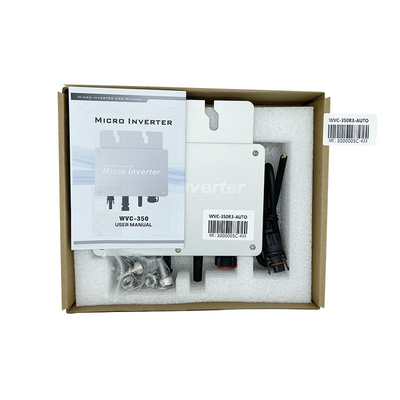

micro inverter solar micro inverter 300w on grid solar panel microinverter 165*176*38mm

1 piece
MOQ
micro inverter solar micro inverter 300w on grid solar panel microinverter 165*176*38mm
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: WVC-350
Input Voltage: 22-60v
Output Voltage: 110/230v
Output Current: 2.91a/1.52a
Output Frequency: 50/60Hz
Output Type: Single
Size: 165*176*38mm
Type: DC/AC Inverters
Inverter Efficiency: 93%
Certificate: CE
Warranty: 1 Year
Weight: 0.82Kg
Información básica
Certificación: CE
Model Number: WVC-350
Pago y Envío Términos
Packaging Details: Carton packaging
Supply Ability: 50000 Piece/Pieces per Month
Descripción de producto
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
Model
WVC-350
Maximum input power
1×435Watt
Output voltage mode
120/230V Auto Switch
PV Open circuit voltage
33-60Voc
Operating voltage range
22-60V
Starting voltage range
22-60V
short-circuit current
18A
Maximum working current
16A
Output parameters
@120V
@230V
Maximum Output Power
350watt
350watt
Rated Output Power
330watt
330watt
Output current
2.91A
1.52A
AC voltage range
80-160VAC
180-280VAC
Number of branch connections.
15 units
25 units
AC frequency range
47.5-52/57.5-62Hz
Power factor
>95%
Output efficiency
Static MPPT efficiency
99.5%
Max output efficiency
95%
Loss of power at night
<0.5W
Total current harmonics
<5%
Appearance and technical features
Size(L×W×H)mm
165×176×38mm
Net amount
0.82Kg
Waterproof grade
IP65
Temperature range
-40°C to +65°C
Heat dissipation mode
Self-cooling
Communication mode
WiFi
Power transmission mode
Reverse transmission,Load priority
Monitoring system
App
Electromagnetic compatibility
EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1
Power grid
EN61000-3-2 EN62109.UL STD.1741
Power grid detection
DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.A
Certificate
CE
Grid-connected system
The biggest feature of the photovoltaic grid-connected system is that the DC power generated by the photovoltaic array is
converted into AC power that meets the requirements of the commercial power grid through the grid-connected inverter, and thendirectly connected to the commercial power grid.
The power generated by the panel array in the grid-connected system is preferentially supplied to the AC At the load side, excess power is fed back to the grid. On rainy days or nights, when the photovoltaic array does not generate electrical energy or the generated electrical energy cannot meet the load demand, it is powered by the grid.
