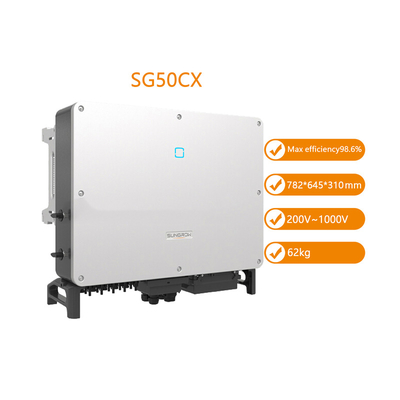

Name: Solar Power System DJSC Solar Grid Tied Inverter Inverter Sungrow 33kw 40kw 50kw Solar System Inverters
Brand: Solar Power System DJSC Solar Grid Tied Inverter Inverter Sungrow 33kw 40kw 50kw Solar System Inverters
SKU: SG33/40/50/110CX
Rating: 4.5 (125 reviews)

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Model Number: SG33/40/50/110CX

Input Voltage: 200VAC/1100VAC

Output Voltage: 312 - 528 V

Output Current: 55.2 A/66.9 A/83.6 A/26*9A

Output Frequency: 50Hz/60Hz

Output Type: Single, Triple, Other

Size: 702*595*310mm/782*645*310mm/782*645*310mm

Type: DC/AC Inverters

Inverter Efficiency: 98.6 % / 98.3 % 98.6% / 98.3% 98.7% / 98.4%

Certificate: CE/TUV/IEC/CQC/MEA/PEA/INMETRO

Warranty: 5 Year

Weight: 50kg/58kg/62kg/89kg

Product Name: Sungrow Solar Inverter

Application: Solar Power System, Home/Commercial/Factory

Rated power: 33/40/50/110kw

Start Voltage: 220V/250V

Protection: IP65

Communication: WIFI/GPRS

Inverter type: Three Phrase

Información básica

Certificación: CE/TUV/IEC/CQC/MEA/PEA/INMETRO

Model Number: SG33/40/50/110CX

Pago y Envío Términos

Packaging Details: Sungrow 33kw 40kw 50kw 110kw International version Sungrow Inverters solar inverters PC/Carton with shockproof cushioning material.

Supply Ability: 10000 Piece/Pieces per Week

Descripción de producto

Product Description

Input (DC)

Type Designation	SG-33CX	SG-40CX	SG-50CX	SG-110CX
Max.PV input voltage	1100V
Min.PV Input voltage/Star-up input voltage	200V/250V
MPP voltage range	585V
MPP voltage range for nominal power	200-1000V
No.of independent MPP inputs	3	4	5	9
Max.number of PV stings per MPPT	2
Max.PV input current	78A	104A	130A	26A*9
Max.DC short-circuit current	120A	160A	200A	40A*9

Output (AC)

Type Designation	SG-33CX	SG-40CX	SG-50CX	SG-110CX
AC output power	33 kVA 45 ℃, 400Vac / 36.3 kVA 40 ℃,400Vac 33 KVA 50 ℃, 415Vac / 36.3 KVA 45 ℃, 415Va	40 kVA 45 ℃, 400Vac / 44 kVA 40 ℃, 400Vac 40 KVA 50 ℃, 415Vac / 44 KVA 45 ℃, 415Vac	50 kVA 45 ℃, 400Vac / 55kVA 40 ℃,400Vac 50KVA 50 ℃, 415Vac / 55kVA 45 ℃,415Vac (Australia: max. 50 kVA)	110 kVA 45 ℃ 100 kVA 50 ℃
Max. AC output current	55.2A	66.9A	83.6A	158.8 A
Nominal AC voltage	3/N/PE,230/400V
AC voltage range	312-528V			320 – 460 V
Nominal grid freuquency/Grid frequency range	50Hz/45-55Hz,60Hz/55-65Hz
THD	<3%(at norminal power)
DC Current injection	<0.5% In
Power factor at norminal power/Ajustable power factor	>0.99 / 0.8 lead ing - 0.8 lagg ing
Feed-in phase/Connection phase	3/3
Max. efficiency / European efficiency	98.6 % / 98.3 %	98.6% / 98.3%	98.7% / 98.4%	98.7 % / 98.5%

Protection

DC reverse connection protection	Yes
AC short circuit protection	Yes
Leakage current protection	Yes
Grid monitoring	Yes
DC switch	Yes (not available for Australia)
AC switch	No
